Measurement Microphone Kit for Alpine OPTIM™8 and OPTIM™6 KTX-CSP1

Detailní popis produktu

• Capture the most accurate sound system measurements in your vehicle for precise tuning results with Alpine's OPTIM™8 and OPTIM™6 Processors.

• The KTX-CSP1 Mic Kit makes tuning your system a breeze. The ultra-precision microphone is designed to capture a wide frequency range, meaning you’ll get the most accurate sound measurements for optimal tuning adjustments.

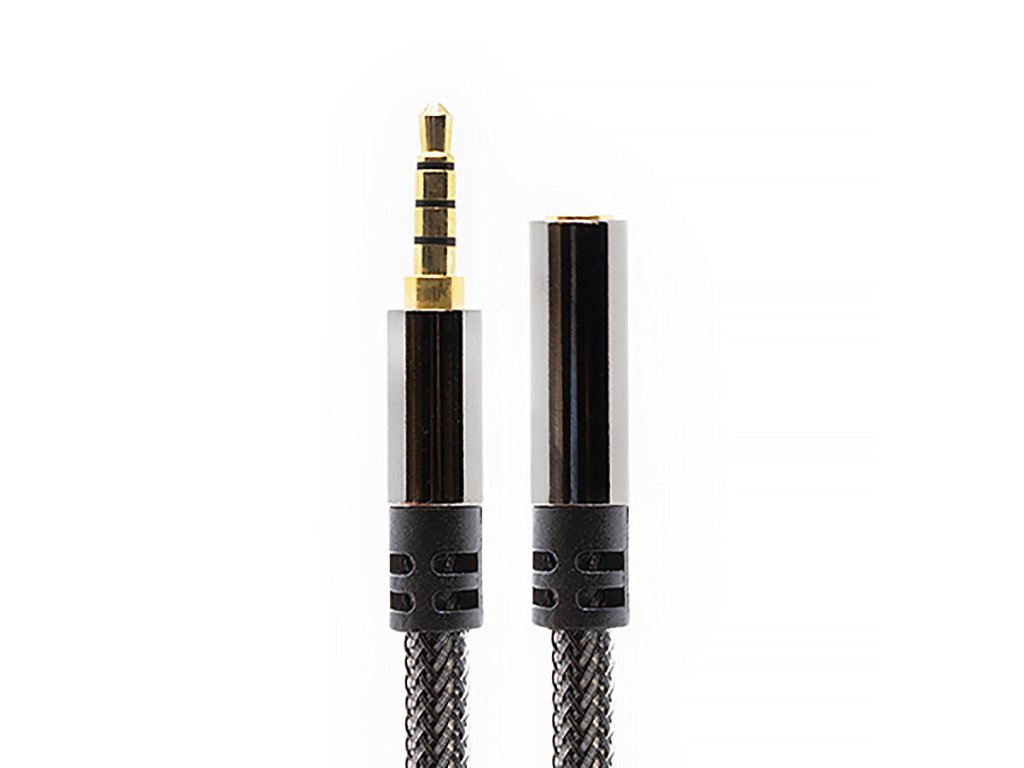

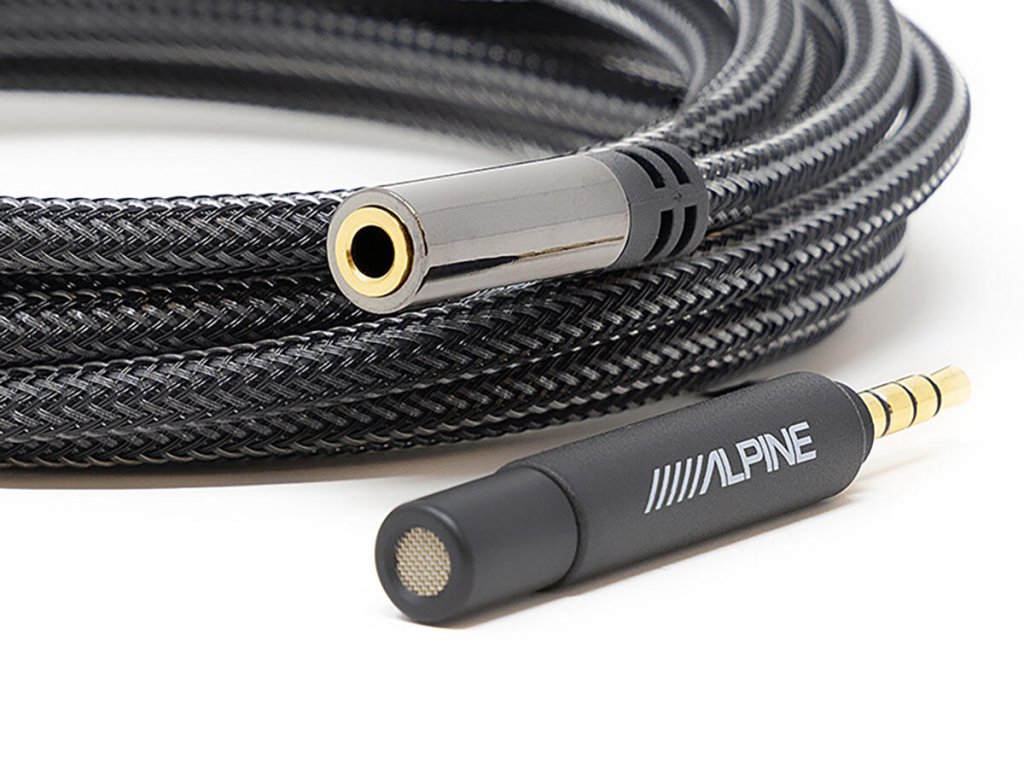

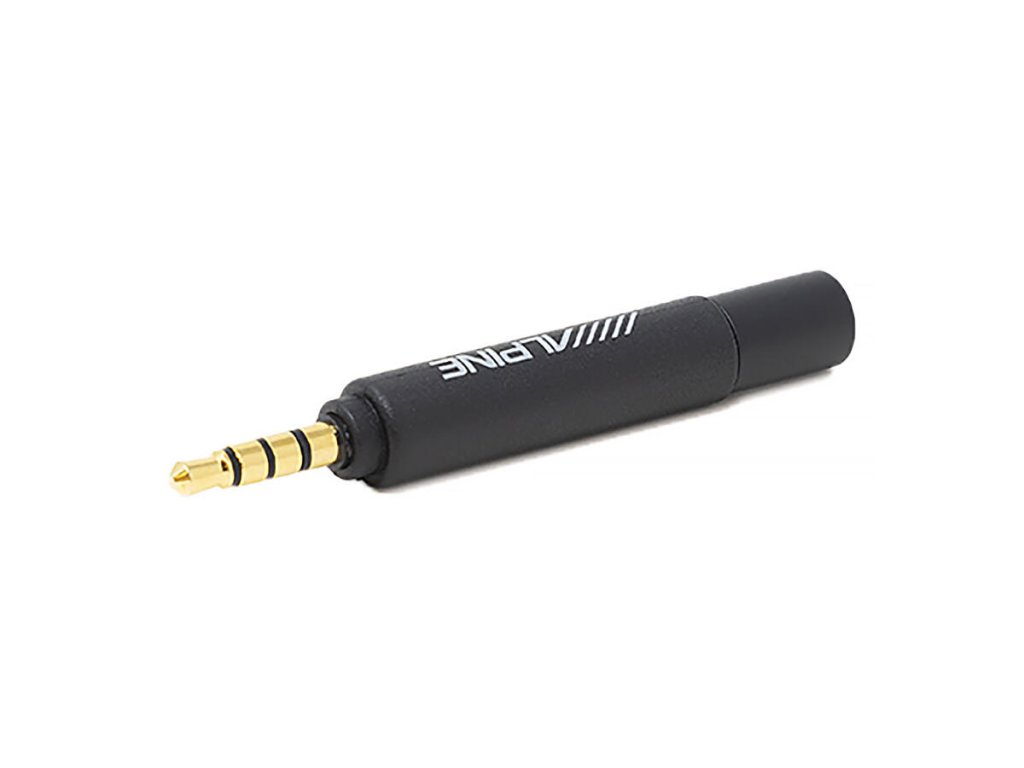

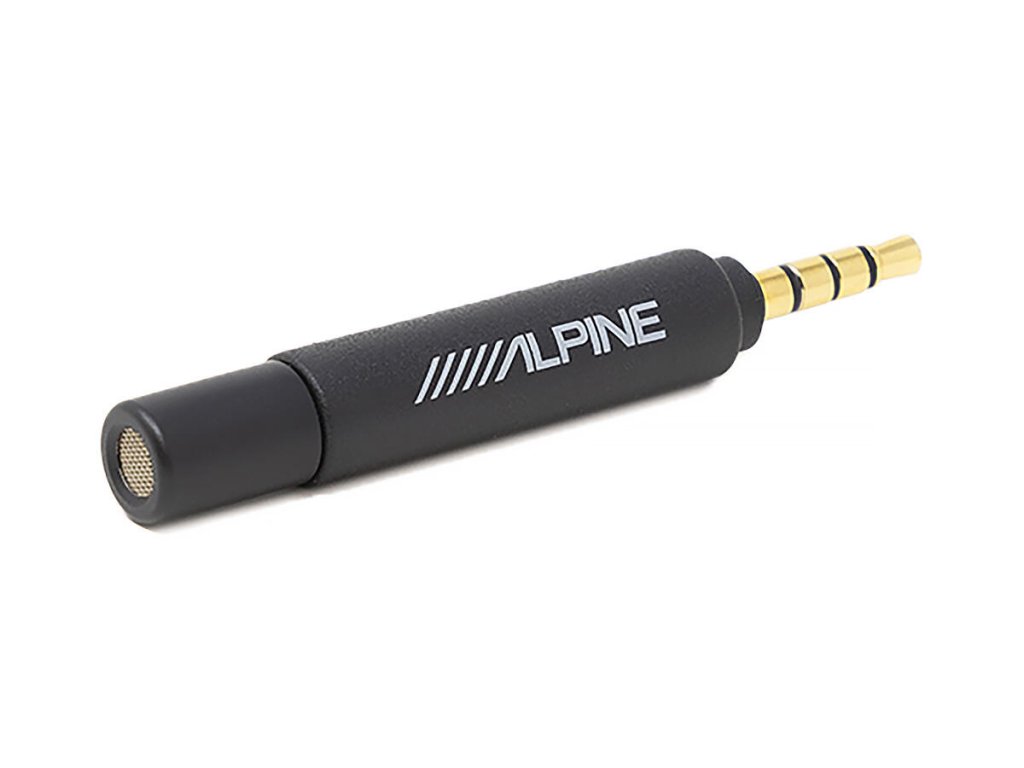

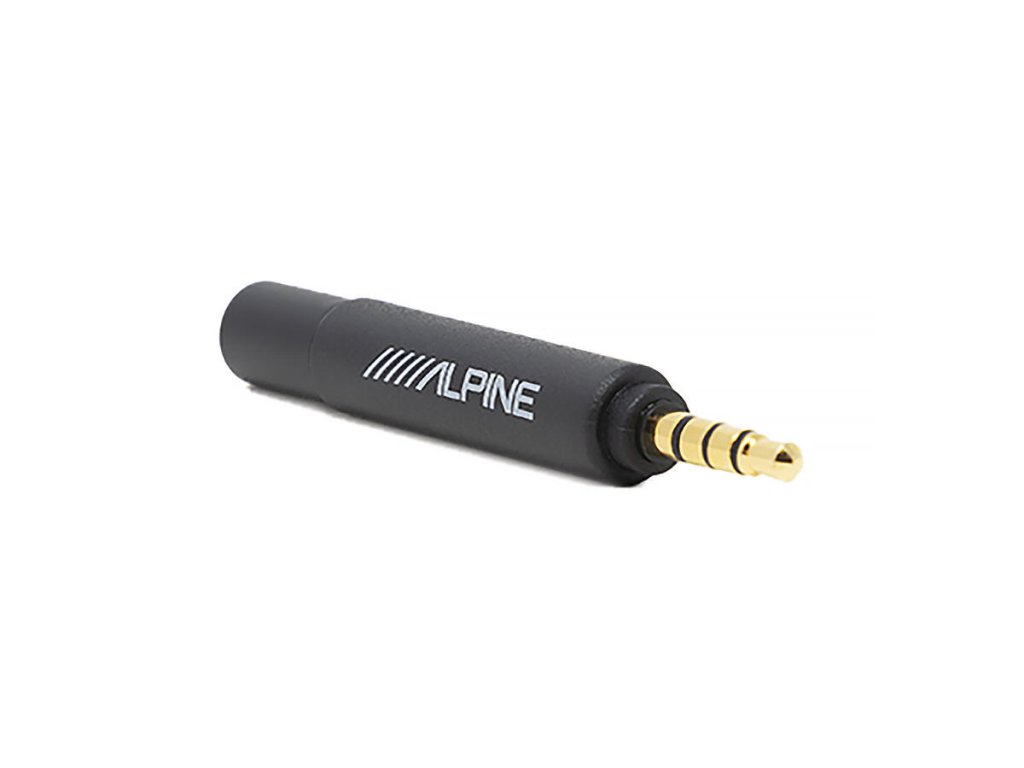

• The KTX-CSP1 Mic Kit includes a 3.5 mm headset jack with a built-in precision microphone and a 6’ auxiliary cable that’s designed to plug directly into Alpine's OPTIM™8 or OPTIM™6 Processors. This allows for easy microphone movements around the vehicle interior to capture the most accurate sound measurements.

• - 3.5 mm headset jack with microphone
• - Recommended use for the PXE-C80-88 (OPTIM™8) and PXE-C60-60 (OPTIM™6)

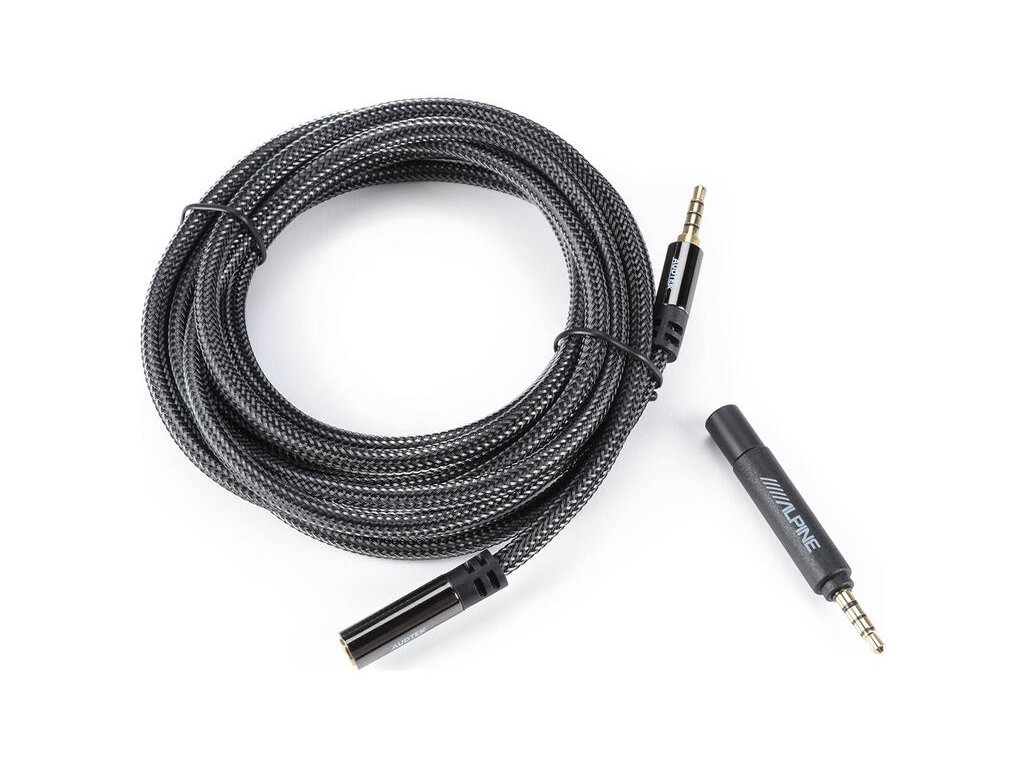

• - What’s in the Box: 1x Microphone, 1x 6’ Aux Cable
• - Capsule Type: Precision 6 mm electret condenser
• - Polar Response: True Omnidirectional
• - Frequency Response: 18 - 20,000 Hz, ±0.5 dB (calibrated)
• - Impedance: 200 ohms
• - Sensitivity at 1 kHz into 1 kohm: 10 mV/PA (-40 dBV, ref. 0 dB = 1 V/PA)
• - Maximum SPL for 1% THD @ 1k: 127 dB
• - S/N ratio: 70 dB (A-Weighted, varies depending on host device)
• - Connector: Gold-plated 3.5 mm TRRS
• - Weight: Ultra-light 7.6 grams
